Key Takeaways
-
EZ Clip fittings eliminate the need for heavy crimping machines and can reduce assembly time by 50% compared to traditional crimped connections, making them ideal for roadside and remote fleet repairs.
-
Lubricate the nipple with compressor oil, verify full insertion of the nipple, use even pressure with the closing tool, and always perform a post-install pressure test to avoid leaks and compressor damage.
-
Improper installation causes costly problems including refrigerant leaks, compressor damage, moisture contamination, and repeat service calls that multiply downtime expenses for fleet operators.
-
EZ Clip fittings come in #6, #8, #10, and #12 sizes—matching the wrong size to your hose diameter creates weak seals, so verify hose specifications and fitting compatibility before assembly.
-
Common hidden mistakes like reusing clips, cutting hoses at angles, skipping O-ring inspection, and ignoring refrigerant compatibility significantly reduce seal integrity and system reliability.
-
Fleet managers and technicians benefit most from professional training in EPA 609 certification and MVAC repair standards to ensure consistent, safe installations and reduce repeat failures.
If you have ever watched a hose repair drag on for hours because someone couldn’t find a crimping machine, you know how frustrating fleet A/C work can be. That’s exactly the headache the Red Dot Aeroquip EZ Clip fitting was built to solve. Whether you run a trucking fleet, manage buses, or fix your own truck’s air conditioning on the weekend, understanding this fitting can save you time, money, and a lot of sweaty afternoons.
At Marks Air, we’ve spent decades working on mobile A/C systems in Tampa, and we’ve seen firsthand how the right fitting choice makes or breaks a repair. This guide walks through the most common mistakes people make with EZ Clip fittings, so you can avoid them and get your system sealed right the first time. Let’s dig in.

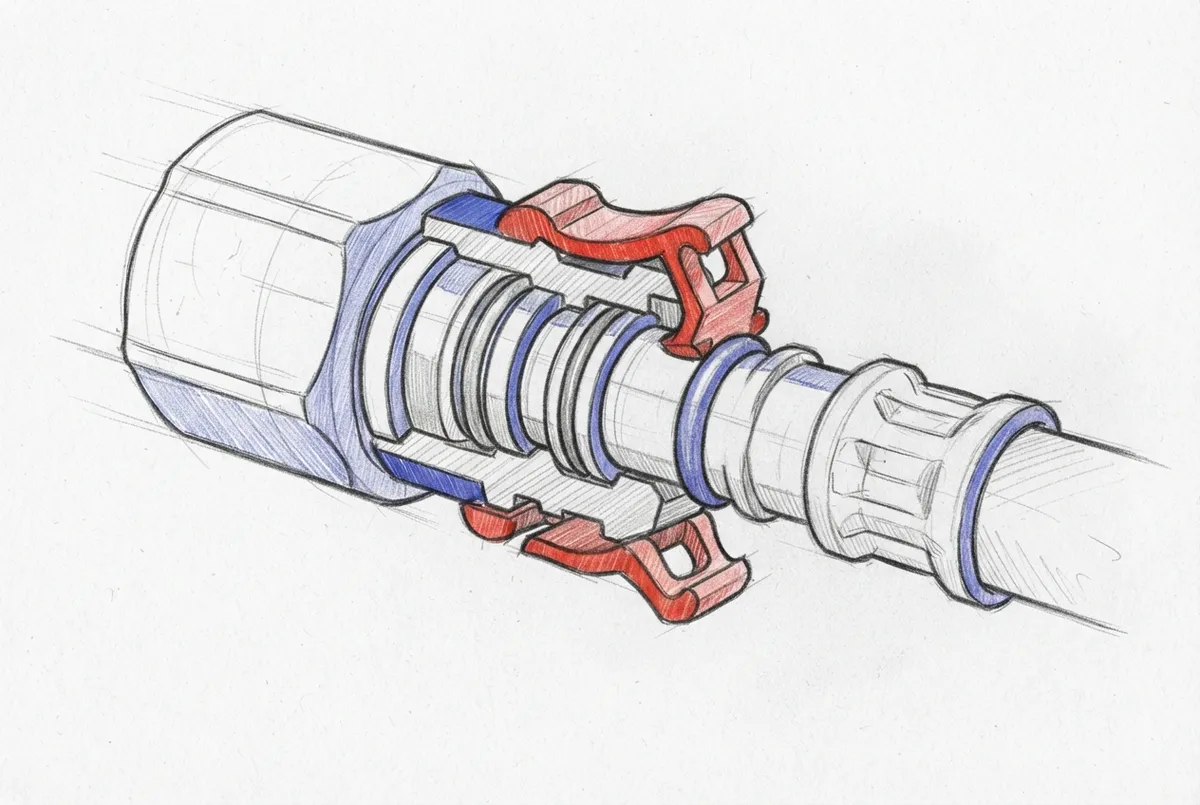

What Is a Red Dot Aeroquip EZ Clip Fitting, Really?
A Red Dot Aeroquip EZ Clip fitting is a field-assembleable hose fitting used to repair or build refrigerant hose assemblies. It’s popular in mobile A/C work because it doesn’t require a heavy crimping machine. Instead, it uses a cut hose, two clips, a lubricated nipple, and a cage that locks everything together by hand tools.
This system was designed for trucks, buses, construction equipment, and agricultural machines where A/C hoses take a beating. Eaton and Aeroquip promotional materials claim the Next Gen A/C hose paired with E-Z Clip fittings can cut assembly time by 50% compared to traditional crimped connections. That’s a big deal when you’re trying to get a fleet vehicle back on the road fast.
Why Mistakes With This Fitting Cost You More Than You Think
A poorly installed EZ Clip fitting doesn’t just leak refrigerant. It can lead to compressor damage, moisture contamination, and repeat service calls that eat into your budget. For fleet owners and heavy equipment operators, that downtime adds up fast.
- Refrigerant leaks lower cooling performance and waste expensive refrigerant.
- Moisture entering the system can corrode internal parts over time.
- Improperly seated clips may pop loose under pressure, causing sudden failures.
- Mismatched hose and fitting sizes create weak points in the assembly.
- Skipping lubrication steps increases friction damage during installation.

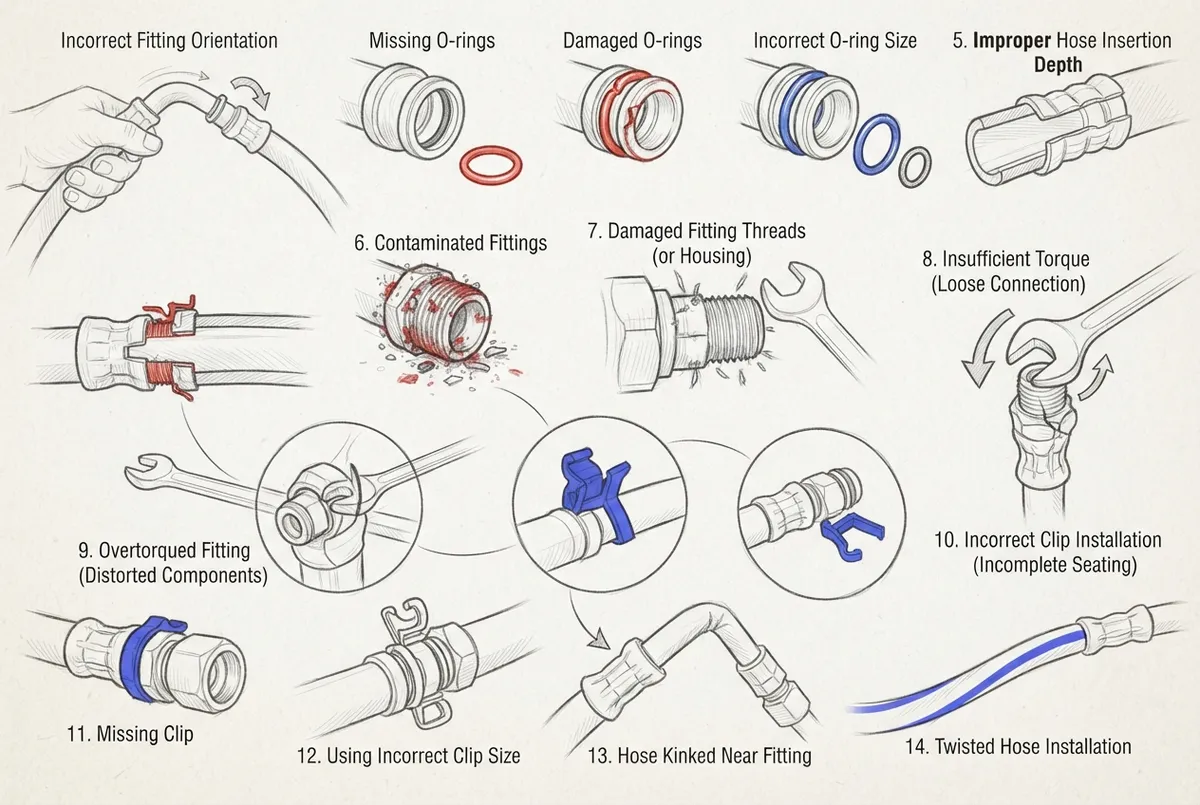

14 Common Mistakes to Avoid With EZ Clip Fittings
Here are the mistakes we see most often, whether it’s a first-time DIYer or an experienced fleet technician rushing a job. Fixing these small details makes a huge difference in the durability of your repair.
- Using the wrong hose type. EZ Clip fittings are designed for specific Aeroquip refrigerant hoses, like the GH134 family. Using an incompatible hose voids the seal integrity.
- Skipping the lubrication step. Manufacturer instructions call for lubricating the nipple with compressor oil before insertion. Dry fittings are much harder to seat correctly.
- Not verifying full insertion. The nipple must be fully seated before closing the clips. A partial insertion looks fine but will leak under pressure.
- Mismatching fitting sizes. EZ Clip fittings come in #6, #8, #10, and #12 sizes. Grabbing the wrong size for your hose diameter is a rookie mistake that leads to poor seals.
- Ignoring O-ring condition. Cracked or worn O-rings inside the clip cage assembly are a common hidden cause of slow leaks.
- Rushing the closing tool step. The closing tool needs even pressure to lock both clips properly. Uneven closure leaves gaps.
- Reusing old clips. Clips are meant to be used once. Reusing them from a previous repair often results in a weaker connection.
- Cutting the hose at an angle. A clean, square cut helps the nipple seat evenly. Angled cuts create uneven pressure points.
- Forgetting to check hose rating. Some sources note that E-Z Clip assemblies with compatible hoses exceed SAE J2064 standards and are rated from -40°F to 275°F. Using a hose without this rating in extreme heat or cold is risky.
- Not inspecting the cage for damage. A bent or damaged cage won’t close evenly around the nipple, leading to leaks.
- Skipping a post-install pressure test. Never assume a fitting is sealed just because it looks good. Always test before closing up the system.
- Using the wrong port fitting for diagnostics. Some EZ Clip splicer fittings include an integrated 16mm R134a high-side service port. Confusing this with a standard port can mess up your charging process.
- Overlooking refrigerant compatibility. EZ Clip fittings work well with R134a systems, but always confirm your hose and fitting combination matches your refrigerant type.
- Trying to DIY complex fleet repairs without training. Field fittings are simple in concept but still require practice. Without proper training, mistakes multiply fast.
How the Installation Process Actually Works
Understanding the steps helps you catch mistakes before they happen. Here’s a simplified breakdown of the standard EZ Clip installation process, based on Red Dot’s own demonstration materials.
- Cut the hose cleanly and squarely to the correct length.
- Lubricate the nipple with compressor oil.
- Insert the nipple fully into the hose end.
- Slide the clip cage into position over the connection.
- Insert both clips into the cage slots.
- Use the closing tool to lock the clips in place evenly.
- Inspect the finished connection and test for leaks.
This process is designed to be fast and repeatable in the field, which is exactly why it’s so popular with truck drivers, bus fleet managers, and heavy equipment operators who can’t always get to a full-service shop right away.
EZ Clip Sizes and Their Common Uses
Choosing the right size fitting matters just as much as the installation technique. Here’s a quick reference table showing common EZ Clip sizes and where they’re typically used in mobile A/C systems.
| Fitting Size | Typical Hose Diameter | Common Application |
|---|---|---|
| #6 | Small diameter | Passenger cars, light trucks, service ports |
| #8 | Medium diameter | Trucks, RVs, light commercial vehicles |
| #10 | Larger diameter | Buses, heavy trucks, agricultural equipment |
| #12 | Largest standard size | Heavy equipment, high-capacity systems |
For example, a Red Dot-compatible splicer fitting identified by part number 70R8276 comes in a #6 x #6 configuration with a built-in 16mm high-side R134a port. That kind of detail matters when you’re stocking parts for a mixed fleet of vehicles.
Crimp Fittings vs EZ Clip Fittings: What’s the Difference?
Fleet managers often ask whether they should stick with traditional crimp fittings or switch to EZ Clip style connections. Both have their place, but the right choice depends on your situation.
| Feature | Crimp Fitting | EZ Clip Fitting |
|---|---|---|
| Equipment Needed | Crimping machine required | Simple closing tool |
| Field Repair Friendly | Difficult without shop setup | Designed for field use |
| Assembly Speed | Slower, more setup time | Up to 50% faster per Eaton/Aeroquip claims |
| Reusability of Parts | Not reusable | Clips are single-use, but process is quick to repeat |
| Best For | Shop-based bulk hose production | Remote or emergency roadside repairs |
Neither option is universally “better.” A busy shop doing high-volume hose builds may prefer crimping equipment, while a technician doing roadside emergency repairs will appreciate the EZ Clip system’s portability.
Who Benefits Most From EZ Clip Fittings?
This fitting style isn’t just for one type of customer. It solves real problems across several industries we work with every day in Tampa.
- Truck drivers and fleet operators dealing with hose failures far from a shop.
- Bus operators needing quick turnarounds to keep passenger vehicles running.
- RV enthusiasts who want a reliable fix while traveling without access to specialty tools.
- Heavy equipment operators working construction or agricultural sites where downtime is expensive.
- Automobile fleet owners managing multiple vehicles that need consistent, fast A/C repairs.
If any of these describe your situation, having a shop that understands both traditional and field-style fittings is a huge advantage. Our team at Marks Air keeps a full stock of A/C parts on hand, including fittings compatible with EZ Clip style repairs, so you’re not stuck waiting on backordered parts.
When Should You Call a Professional Instead of DIY?
EZ Clip fittings are marketed as field-friendly, but that doesn’t mean every repair is a good DIY project. Here’s when it makes sense to bring in a pro.
- The leak is in a hard-to-reach location near the compressor or evaporator.
- You’re not confident about matching hose type to fitting compatibility.
- The system has been low on refrigerant for a while, which may signal a bigger issue.
- You don’t have access to a proper closing tool or lubrication supplies.
- The vehicle is under warranty and DIY repairs could void coverage.
If any of these apply, it’s worth reaching out to a shop with real experience in mobile A/C systems. Our team has handled everything from small passenger car repairs to full fleet AC hose fabrication jobs, and we know how to match the right fitting to the right application.
Why Training Matters for EZ Clip Installations
Even simple field fittings benefit from proper training. Fleet managers who invest in technician training see fewer repeat repairs and safer working conditions. Marks Air offers hands-on A/C training programs covering EPA 609 certification, HFO-1234yf best practices, and MVAC repair standards, which cover the fundamentals behind proper fitting installation.
We’re also proud to be a member of the Mobile Air Climate Systems Association (MACS), which keeps our team updated on the latest standards for mobile A/C systems, including hose and fitting technology like EZ Clip.
A Quick Word on Refrigerant and Fitting Compatibility
EZ Clip fittings are commonly used with R134a systems, and many splicer-style fittings even include a built-in high-side service port for easy diagnostics and charging. If you’re managing a mixed fleet transitioning between refrigerant types, it’s worth reviewing our guide on R-134a to 1234yf conversion before choosing fittings for new hose assemblies.
How Marks Air Can Help With Your Hose and Fitting Needs
Since 1971, Marks Air has been Tampa’s go-to shop for A/C diagnostics, repairs, and parts across cars, trucks, buses, RVs, and heavy equipment. We stock trusted brands and our own KOOL-TEMP parts line, so whether you need a quick EZ Clip repair or a full system overhaul, we’ve got what you need in stock.
Curious what our customers say about working with us? You can read honest reviews on Yelp or check out our team’s work on Instagram and Facebook. You can also visit us on Google — Marks Air to see location details and more feedback from local customers.
Final Thoughts: Don’t Let a Small Fitting Cause Big Problems
The Red Dot Aeroquip EZ Clip fitting is a smart, fast solution for mobile A/C hose repairs, but only when it’s installed correctly. Skipping steps like lubrication, proper sizing, or a final pressure test can turn a quick fix into a repeat headache. Avoiding these 14 mistakes will save you time, money, and a lot of unnecessary frustration on the road or job site.
If your fleet, RV, or personal vehicle needs a reliable A/C repair in Tampa, our family-owned team is ready to help. Schedule service with Marks Air today or call us at 813-988-1671 to get your A/C system running cool and reliable again.
FAQs
Q: What is a Red Dot Aeroquip EZ Clip fitting used for?
A: It’s used to repair or build refrigerant hose assemblies in mobile A/C systems, like trucks, buses, RVs, and heavy equipment. It’s a favorite for field repairs because you don’t need a crimping machine to get a solid seal.
Q: Do EZ Clip fittings require a crimping machine?
A: Nope, that’s the whole point! EZ Clip fittings use a simple closing tool instead, which makes them perfect for roadside or remote repairs when a crimping machine just isn’t available.
Q: What sizes do Aeroquip EZ Clip fittings come in?
A: They typically come in #6, #8, #10, and #12 sizes, matching standard A/C hose diameters. Picking the right size for your hose is key to getting a leak-free connection.
Q: Can EZ Clip fittings be used for R134a A/C systems?
A: Yes, they’re commonly used with R134a systems, and some splicer versions even include a built-in high-side service port for easy charging and diagnostics. Just be sure your hose and fitting combination matches your refrigerant type.
Q: How do you know if an EZ Clip hose assembly is sealed correctly?
A: The best way is to run a pressure test after installation before closing up the system. Also double-check that the nipple was fully inserted and lubricated, and that both clips closed evenly with no gaps.
